API Request log *

Overview

API Request log comprehensively records all system-related API requests and offers detailed information for troubleshooting purposes. These logs reveal which resource initiated the request, quantify the associated load, and document the response sent in return. Advanced filtering options empower you to precisely locate a specific request by targeting its body content, ensuring efficient maintenance of the service level.

Banking API

Opening the item

Follow the steps below to access an API request:

  1. Navigate to the Admin Panel

  2. Click Administration on the left sidebar

  3. Go to the Api Request log menu item.

  4. Click Show in a request line to open its details.

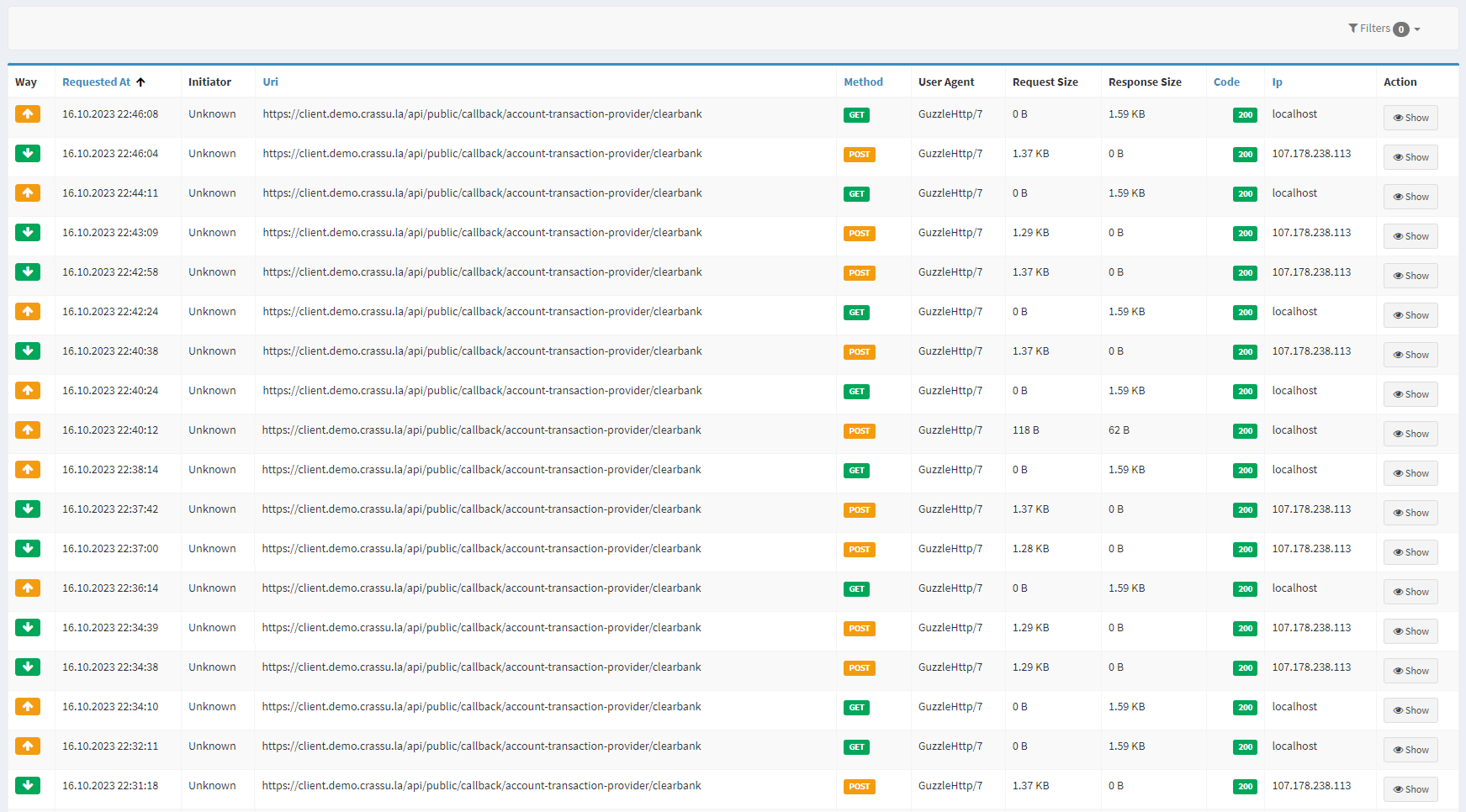

Component parameters


Parameter

Description

Way

Defines whether the request is incoming (green) or outgoing (yellow).

Requested At

Date and time of request creation.

Initiator

Request initiator details, such as API keys.

Uri

Uniform Resource Identifier is a unique sequence of characters that identifies the resource of a request.

Method

Defines the method used in a request.

User Agent

Defines a webhook service used to generate a request.

Request Size

Defines the amount of data in the request.

Response Size

Defines the amount of data in the response.

Code

Response code.

IP

Request’s IP address.

Action

Click Show to open request details without the ability to edit them.

Filters

  • Requested at: Filter the list by date and time of request creation.

  • Method: Filter the list by request methods.

  • Uri: Filter the list by the resource identifier.

  • Request body: Filter the list by the contents of the request body.

  • Response body: Filter the list by the contents of the response body.

  • Code: Filter the list by response codes.

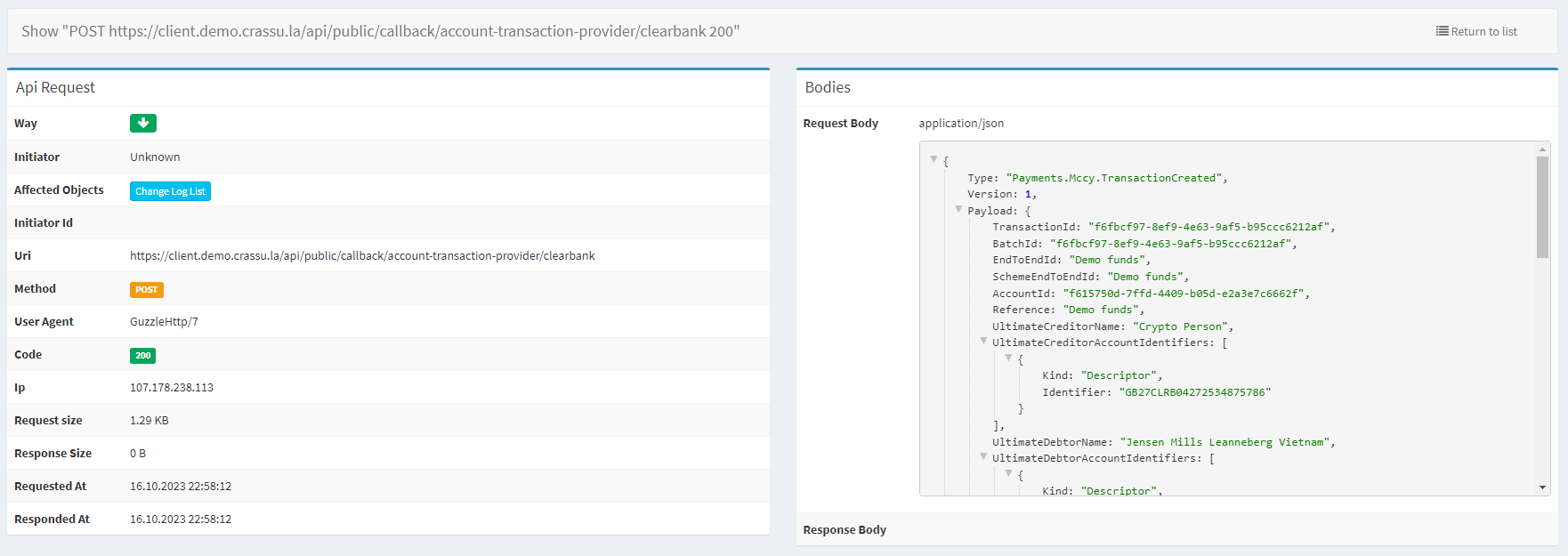

Configuring the component


Parameter

Description

Way

Defines whether the request is incoming (green) or outgoing (yellow).

Initiator

Request initiator details, such as API keys.

Affected Objects

If the request affects any object in the system—for example, personal details of a client—the Change Log List button is shown, which allows you to open Client Activity logs with the full list of affected objects.

Initiator Id

Defines a unique sequence of characters that identifies the request Initiator.

Uri

Uniform Resource Identifier is a unique sequence of characters that identifies the resource of a request.

Method

Defines the method used in a request.

User Agent

Defines a webhook service used to generate a request.

Code

Response code.

IP

Request’s IP address.

Request Size

Defines the amount of data in the request.

Response Size

Defines the amount of data in the response.

Requested At

Date and time of request creation.

Responded At

Date and time of response creation.

Bodies

Request and Response bodies.
